ARCH1101: Before the first class
Multipurpose Building Concept Design
The proposed concept building assigned on George St, Redfern is constructed and sustained by eco materials. On the north adjustable timber louvers reflect heat during summer and reduced heat in the building. West facing facade consist of Kanye Mail, a architectural mesh which revolves around recycled materials.
Heydar Aliyev Center
Zaha Hadid's Heydar Aliyev Center has the sense of flow in her architecture. The design has fluidity and a robust structure which gives the building life. Hadid won the Design of the Year award for this center in the heart of Azerbaijan.
1967 Camaro SS
Engineered and legal to drive, the sun-setting 67 Camaro SS also known as the 'ageless car' upgraded with a LS2 6.0L V8 engine and pumping out almost 600HP on the wheels. During this event out of 10 awards, this Camaro SS has won best style and condition.

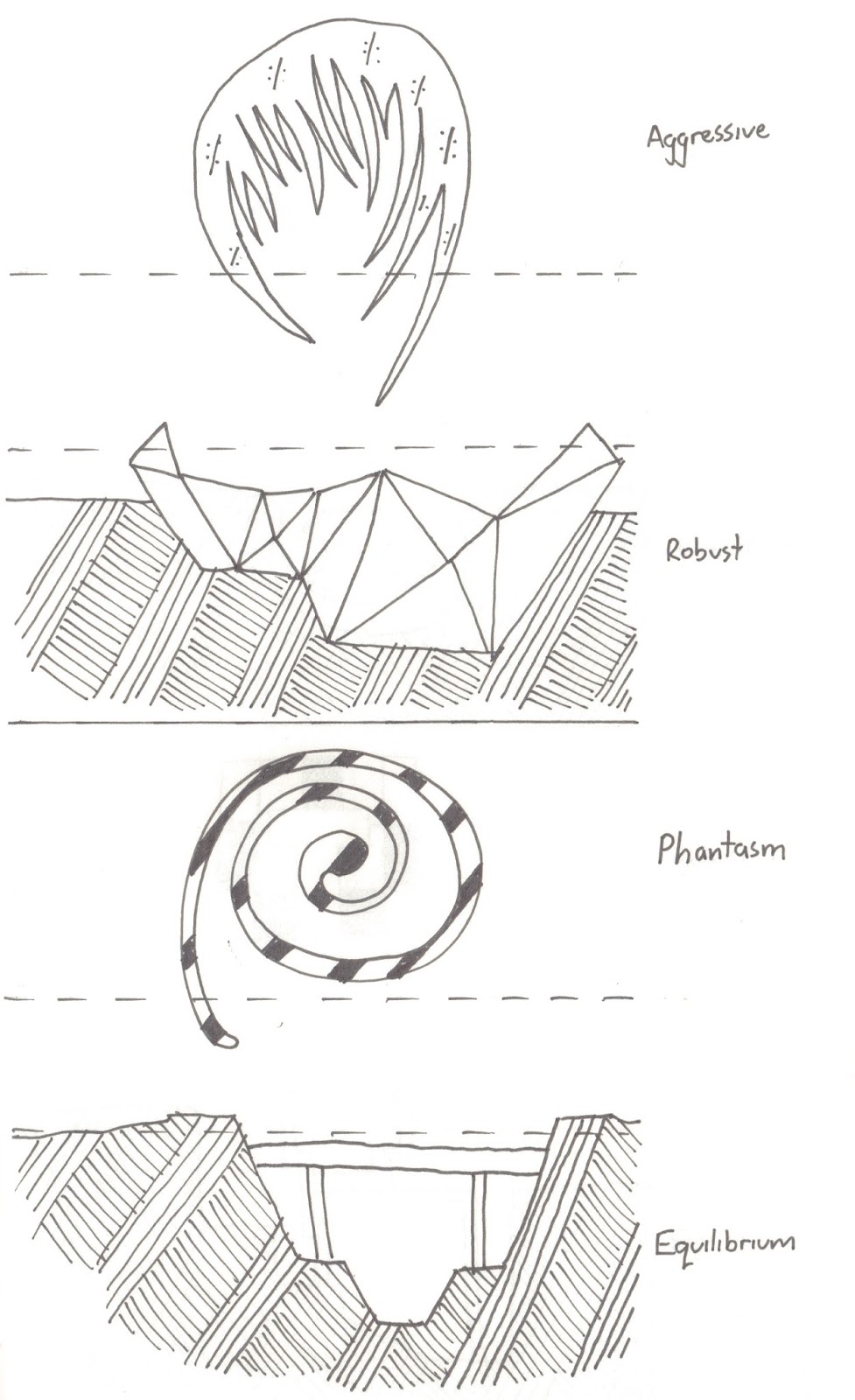

Phantasm.Drift.Robust
Equilibrium.Attach.Agressive
Hallucination.Mesmerizing.Powerful
Week 1: 18 Sketch Sections:
Revival Cycles & CJ Hendry
 |
SketchUp: Draft 3D Diagram Section
Week 2: The Stair
Week 3: 36 Custom Textures:
ABOVE
BELOW
IN BETWEEN
Used Textures in Model:
Week 4: Model & Animations
Final Model Design
Animations
2D Sketch:
https://3dwarehouse.sketchup.com/search/?q=ARCH1101%20Colin%20Ormiston&searchTab=model
